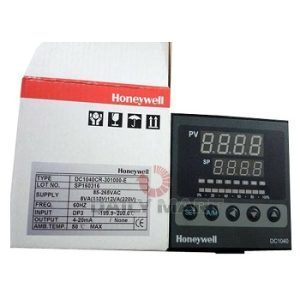

Honeywell PID Controller DC1040 for

Universal Power supply

Operates on any voltage from 85Vac to 264Vac at 50/60Hz.

Operating ranges from 0°C to +65°C (4°F~140°F), Humidity=50 to 85% RH

Honeywell  PID Temperature Controller

• Easy to Configure Different configuration levels provide easy access to parameters.
• Various Control Algorithm Several different algorithms are available as follows:
• PID or ON/OFF Control
• Heat/Cool Control with 2 PID sets
• Motor Position Control (without slidewire feedback)
• Auto-Tuning Capability Advanced auto-tuning function calculates the optimized PID values for your specific control system.
• Dual Display and Bar graph Two large 4 digits display PV, SP and configuration parameters. One 10 LED bar-graph displays the control output (MV), and up to 8 LEDs display the status of the different outputs (Control, Alarm, …) and also provide indication of the Auto/Manual and programmer states.
• Setpoint Programming Two programs are available with a maximum of 8 segments. The 2 programs can be linked together and perform as a single 16 segment program.
• Extended Alarm Capability Up to three different alarm outputs are available per instrument and 17 kinds of event modes can be assigned to each of alarm output.
• Communications RS232 or RS485 (with ASC II & Modbus RTU Protocol) is optionally available with a maximum communication speed of 38400 bps.
• IP65 Front Face Protection IP65 rated front face permits use in applications where it may be subjected to moisture, dust conditions.
• Remote Setpoint Capability The setpoint can be defined from a remote PLC or other controller.
• Manual & Automatic Modes The control mode can be switched between Automatic and manual by clicking A/M key. (The A/M key is available with DC1020, DC1030 and DC1040)
• Global Approvals – CE & cUL All models are CE certified as a standard, and UL approved version for all models are available optionally.
• Parameter Lock A 4-digit security code prevents any unauthorized changes of parameters or configurations. Parameters can be hidden to user to prevent any mis-configuration of the unit.
