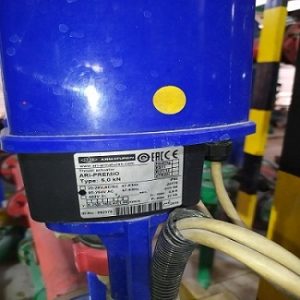

Thrust Actuator ARI-Premio- 3 Way Motorized Control Valve – 5.0KN
3 Way Motorized proportional Control Valve Thrust Actuator ARI-Premio- 5.0KN/ Electric 3-Way Mixing Type Control Valve-
3-WAY VALVE FUNCTION/How to work
Shutting off the flow of liquid or gas (media) in a piping system. Opening the flow of liquid or gas in a piping system. Mixing of liquid or gas from two different pipes. Diverting flow of liquid or gas in the valve. A 3-way directional control valve is used to control the direction of fluid flow in hydraulic and pneumatic systems. It features three ports and two flow paths. Typically, these ports include a pressure port (P), an actuator port (A), and a tank port (T).
How does a 3 way Motorized valve work?
where electrical three way motorized control valve use ??
What is Proportional Working Principle?
The proportional operating principle is a control system concept that refers to the use of a control signal that is directly proportional to the error between the desired setpoint and the actual process value. In other words, the control signal is adjusted proportionally to the size and direction of the error. This type of control system is used in various applications where it is necessary to keep a process variable at a certain setpoint or within a certain range.
In the proportional control system, the control signal is generated by a controller that compares the setpoint with the process value and calculates the error. The controller then applies a control signal proportional to the error to the process. The control signal is generally applied via a control element such as a valve that can adjust the flow of a fluid or the position of a mechanism to change the process variable.
General features
- Product: 3 Way Motorized Proportional Control Valve (with metal bellows addition)
- Dimensions: DN15 / DN20 / DN25 / DN32 / DN40 / DN50 / DN65 / DN80 / DN100 / DN125 / DN150
- Usage Area: Pressurized Steam and Hot Oil Lines
- Function: Dispenser Mixer
- Sealing Class: CLASS VI (PTFE Soft Sealing)
- Connection Norm: Flange connection(DIN1092-2)
- Pressure Class: PN16- PN25 (Optional PN40)
- Max. Operating Temperature: 220 °C
- Neck Sealing: V – Package
- Characteristic: Equal Percent – Linear
- Control Signal: 4-20mA – 0-10 VDC
- Feedback Signal: 4-20mA – 0-10 VDC
It maintains its position when the power is cut off.
Electric Motor Features
- Supply: 24 VAC – 24 VDC – 220 VAC (3 Point Floating Control)
- Drive Force: (N) 1000N – 2200N – 2500N – 3000N
- Stroke: 20 mm for DN 15 – 50 ; 30 mm for DN 50-100
- Stroke Completion Time: 20 sec for DN 15 – 50; 30 sec for DN 50-100
Material Properties
- Body: GGG – 40.3 Ductile Iron
- Cover: GGG – 40.3 Ductile Iron
- Neck Connector: ST44- 3 (S275J0)
- Actuator Body: AL6063 ENJ. – ABS Plastic
- Seat: 1.4571 Stainless Steel (AISI316)
Accessories
Ask for the addition of a Limit Switch Box.
Ask for 0-1 Kohm Potentiometer addition…
Ask for 4-20 mA / 0-10V DC proportional control and feedback signal..
Ask for high Delta P’s..
Ask for 220V AC – 24V DC Supply..
Inquire for high temperature and special applications.
DN100, DN125, DN150 Body Material is PN16 Cast Iron..
