Hardware specifications

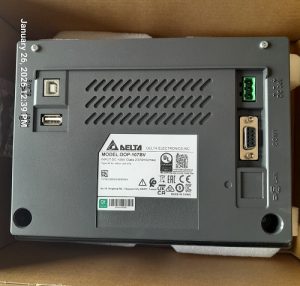

Model DOP-107BV
Display
Panel type 7″ TFT LCD (65535 colors)
Resolution 800 x 480 pixels
Backlight LED backlight (half-life under room temperature 25oC > 20,000 hours)*1
Display range 154.08 mm * 85.92 mm
Brightness 400 cd / m² (Typ.)
CPU ARM Cortex-A8 (800 MHz)
Flash ROM 256 Mbytes
RAM 256 Mbytes
Touchscreen 4-wire resistive touchscreen > 1,000,000 operated
Buzzer Multi-tone frequency (2 K – 4 KHz) / 80 dB
Network interface N/A USB 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0
SD N/A Serial communication port
COM1 RS-232 (supporting flow control) / RS-485*2
COM2 RS-422 / RS-485*2
COM3 N/A
Auxiliary function key N/A
Calendar Built-in
Cooling method Natural cooling
Approvals CE / UL (please use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz)
Panel waterproof level IP65 / NEMA 4
Operation voltage*2 DC 24V (-15% to 15%) (please use an isolated power supply) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
Leakage current 500 VAC for 1 minute (between DC24V terminal and FG terminal)
Power consumption*2 8.6 W (Max)*3
Backup battery 3V lithium battery CR2032 × 1
Backup battery life About 3 years or more at 25oC (subject to operation temperature and condition)
Operation temperature 0oC to 50oC (32oF to 122oF)
Storage temperature -20oC to 60oC (-4oF to 140oF)
Operating environment 10% – 90% RH [0oC – 40oC], 10% – 55% RH [41oC – 50oC]; pollution degree: 2
Vibration resistance Conforms to IEC61131-2: continuous vibration 5 Hz – 8.3 Hz with amplitude 3.5 mm; 8.3 Hz – 150 Hz with amplitude 1G
Shock resistance Conforms to IEC60068-2-27: 11 ms, 15 G Peak, in X, Y, Z directions each for 6 times
Dimension
(W) x (H) x (D) mm 215 x 161 x 35.5
Mounting dimension
(W) x (H) mm 196.9 x 142.9
Weight Approx. 700 g
